Global Sun Trading, is proud to introduce you to the Ur24T TrueClr, direct sales.
Ur24T TrueClr is an external catheter actively draws urine from the body, allowing the bladder to be voided without any discomfort.
Designed to be an alternative to an internal urinary catheter, the Ur24T TrueClr external catheter is non-invasive, non-adhesive, easy to apply and reusable. The leakproof design eliminates skin irritation and inflammation. It is latex free and hypoallergenic.

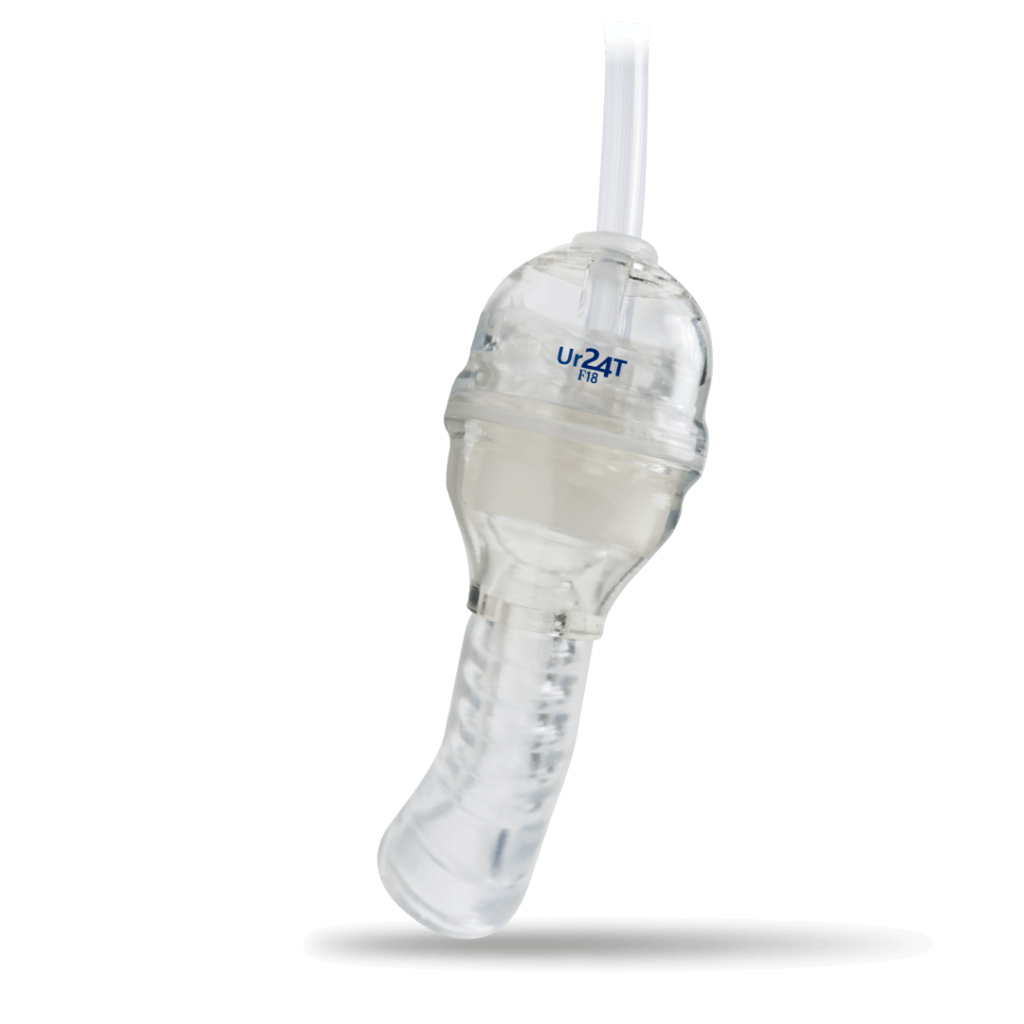

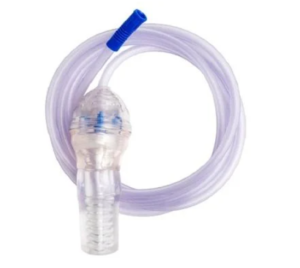

The Ur24T TrueClr consists of a soft gel tube that is attached to a urine collection container. It actively removes urine from the bladder by focusing light suction around the urethra.
Made in USA ( manufacture and components) , FDA Certification, ISO 13485 certified Quality Management Systems (QMS)
The catheter is attached to an aspirator which provides the suction and is designed to be used with both standard standalone aspirator pumps as well as in wall aspirators that are common in healthcare facilities.
Ur24T provides innovative technology that is able to empty the bladder without muscle control and can help treat patients with a variety or urinary conditions including retention.
contact with skin
contact with skin
contact with skin
contact with skin
contact with skin
TrueClr M
TrueClr M+
TrueClr F
TrueClr IM
TrueClr IF
The Vacu-Aide Quiet Suction Unit is the preferred standalone aspirator unit for the suite of Ur24T TrueClr external catheters. However, there are several other aspirators that are readily available on the market that also pair well with the TrueClr. Ur24Technology also sells these aspirators. The following is additional information on these aspirators so that you have familiarity with their functionality, metrics, and ideal patient application.
The Gomco Model 405 is a higher performance aspirator that can generate the highest suction pressures of the aspirators noted in this training guide. This aspirator can be used with all adult Ur24T TrueClr external catheters and is ideal for situations requiring higher levels of suction pressures, such as a patient with severe retention.
• Maximum Suction
Pressure: up to 635 mm Hg
• Maximum Liquid Flow
Rate: ~40 liters per minute
• Power Source: AC power source
The Ur24T TrueCrl, the world’s first completely external catheter system designed to comfortably empty the bladder for adults and infants while eliminating CAUTIs.
The Ur24T TrueClr external catheter operates by proactively removing urine from the bladder through light suction. The catheter suction is powered by an aspirator.
Various models of aspirators can be used in a home setting, or the catheter can be powered by a wall aspirator that is standard in most medical facilities.
The aspirators can be adjusted for optimal suction pressure.
When a patient applies the Ur24T TrueClr, light suction is focused around the urethral opening.
When light suction is applied to the outermost portion of the urethra, it prompts the sphincters to open and allow the passage of urine, resulting in active elimination of the bladder.
Given that the external sphincter is under voluntary control, it is important for the patient to attempt to relax the external sphincter muscle while using the catheter.
Generally, the patient should be in a calm and comfortable environment to promote relaxation in mind and body.
Patients wearing the Ur24T TrueClr overnight will generally be in a more relaxed muscle state as they sleep.
Ur24T TrueCrl Completely empties bladder
Mitigates risk of CAUTI
No painful internal insertion
Sealed system keeps urine sterile
Comfortable design for men and women
External, non-invasive application
Improves patient
Quality of life, comfort, and self-esteem
No leg bag or diapers needed
Portable for use at home and for travel
Easy two-step process with no special training needed
Non-adhesive application
No muscle control needed for urination
Can be used by ambulatory and non-ambulatory persons
Portable and convenient for use in ambulance
Portable and convenient for use at home
1. Ur24T® TrueClr M, TrueClr M+, TrueClr IM, TrueClr F, TrueClr IF
2. A Ur24T® recommended aspirator: Drive DeVilbiss Vacu-Aide® QSU Quiet Suction Unit Item # 7314P-D-UR24, Drive DeVilbiss Compact Suction Pump, or healthcare facility in-wall aspirator.
3. Betadine swab (if desired) and gloves (if desired).
1. Wash hands with soap and water. Put on personal protective equipment (PPE) such
as gloves (if desired). (Place infant on comfortable, flat surface. NEVER leave infant unattended)
2. Clean penis/perineal area and wipe with betadine swab (including underneath foreskin, if
applicable).
3. Adjust aspirator pump to lowest setting.
4. Attach distal TrueClr tubing to negative pressure canister on aspirator pump.
5. Turn on aspirator
1. Invert (roll back) the edge of the TrueClr rubber sleeve (Figure 1).
2. Grasp penis with one hand.
3. Using the other hand, apply the TrueClr to tip of penis, unrolling the rubber
sleeve to cover at least the first inch of penis (Figure 2).
4. If foreskin is present, cover at least 1.5 inches (Figure 2).
5. Titrate up for optimum urine output and patient comfort.
6. Urine should begin to flow via TrueClr tubing into collection canister within
some time (Figure 3) (For Infant Male do not exceed 125 mm of mercury).
1. When urine stops flowing, wait for 30 seconds.
2. To remove the TrueClr,create a gap in the suction by inserting a finger between
the TrueClr and the penis. Carefully roll the TrueClr off the penis (Figure 4).
3. Turn off aspirator pump.
4. Be sure to clean and dry the application area after use.
5. Remember to record urine amount, date, and time.
6. Remove the canister. Dispose of urine according to biosafety and infection
control protocols and standards.
7. Clean the canister with soap and water.
8. Wash the TrueClr with soap and water (or suggested Ur24Technology®
antibacterial spray), then let dry.
9. Empty the bladder every 4-6 hours, or as often as your healthcare professional
recommends.
1. With one hand, separate the labia. Using the other hand, place the TrueClr over the urethral
opening (Figure 1).
2. Titrate up for optimum urine output and patient comfort.
3. Urine should begin to flow via TrueClr tubing into collection canister within some time (Figure 2).
1. When urine stops flowing, wait 30 seconds.
2. Gently remove the TrueClr and set aside. If residual urine is collected in TrueClr, keep opening tilted upward during removal to avoid spill (Figure 3).
3. Turn off aspirator pump.
4. Be sure to clean and dry the application area after use.
5. Remember to record urine amount, date, and time.
6. Remove the canister. Dispose of urine according to biosafety and infection control protocols and standards.
7. Clean the canister with soap and water.
8. Wash the TrueClr with soap and water (or suggested Ur24Techology® anti-bacterial spray), then let dry.
9. Empty the bladder every 4-6 hours, or as often as your healthcare professional recommends.
In this section we will review how to assemble and adjust the Vacu-Aide Quiet Suction Unit (QSU). This is the most common portable aspirator that is used with the Ur24T TrueClr external catheter.
1. 4 3/8” connection tubing
2. Patient tubing connector
3. Lid w/O-ring
4. Jar
5. Overflow valve
6. Connection elbow
7. Bacteria filter
Prior to initial use of the Vacu-Aide, it is necessary to fully charge the aspirator’s battery for a minimum of 17 hours
Securely attach the lid to its container
Insert the reusable collection container into the front pocket and gradually press down into place. Reconnect all tubing and connections.
Reusable Container and Disposable Container w/external Bacteria Filter Connection: Connect either end of the 4-3/8” (reusable) or 3-3/8” (disposable) tubing to the tubing connector then connect the other end to the bacteria filter. Ensure that the clear side of the bacteria filter is toward elbow and bottle when installing.
Attach the Ur24T TrueClr external catheter to the port connector marked “Patient” on the top of the container lid.
Adjusting the portable aspirator: The aspiration level dial is located to the top right-hand corner. Start at the lowest level and turn the vacuum regulator dial clockwise to increase suction pressure. Reference the product comparison table for maximum suction pressure allowance for each Ur24T external catheter model type. Now you are ready to start using your Ur24T TrueClr external catheter.
Start the suction at the lowest possible setting and slowly titrate the aspirator vacuum regulator knob to the preferred setting up to the maximum allowance by Ur24T TrueClr model type.
WARNING
Do not cover the aspirator unit with a towel or other types of sound deadening device. Use the carrying case to reduce noise levels.
Check all tubing connections before turning on the unit.
Exposure to extreme heat or cold may affect the color of the TrueClr but does not affect the functionality.
Do not use catheter while bathing.
Do not drop catheter into water or other liquids while in use
Ur24Technology has elevated the standard of care.
What differentiates the Ur24Technology catheter from other external catheters is that the TrueClr is reusable.
The external catheter should be cleaned after each use.
The device can be cleaned with a mild soap and water or sprayed with Ur24T antibacterial spray.
Each device comes with a bottle of Ur24T antibacterial spray.
Wash hands with soap and water before cleaning the Ur24T external catheter.
On a daily basis, gently cleanse the soft gel sleeve of your TrueClr, with a small amount of mild soap and water. Do not allow water to enter the vents of the hard casing.
Note: Make sure to rinse your catheter thoroughly to flush out any remaining unwanted soap debris. Do not submerge catheter in water. If using multiple times a day, you may spray the catheter with the Ur24T antibacterial spray to
keep it clean between uses.
After drying the catheter completely, you are now ready to use or store the unit until needed
again.
• Once the Ur24T TrueClr is clean and dry, place it inside of the plastic sleeve that it originally came in.
• The catheter should be stored in a cool and dry place with a temperature ranging from 40°-90° Fahrenheit.
Note: Exposure to sunlight can cause the catheter to change in color, however, this does not affect
functionality.
Clean/wash the Ur24T TrueClr daily.
Ensure that there are no gaps between the skin and the TrueClr external catheter. The TrueClr cannot effectively empty the bladder when air flows through gaps created between the device and the patient’s skin.
When operating the portable aspirator in a residential home or nursing home, it is recommended to position the aspirator at the foot of the bed.
When operating in a nursing home or residential home, place the portable aspirator on top of a towel to reduce noise level.
It is critical that the patient is in a relaxed state when using the TrueClr catheter.
If the patient is experiencing a delay in urine evacuation, you may try suggesting that the patient or nurse turn off the aspirator and then turn back on. This may help the urine begin to flow. You can repeat this technique multiple times.
